Transfer Clutch: Assembly

Install the transfer clutch piston.

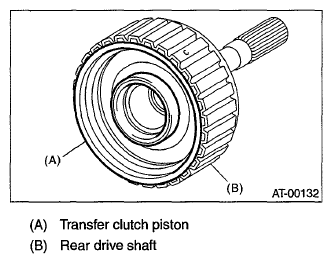

Fig 1: Identifying Transfer Clutch Piston And Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the return spring to transfer clutch piston.

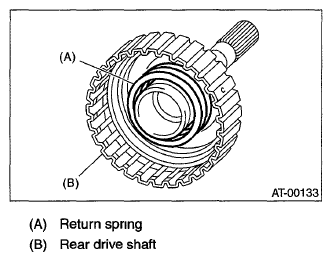

Fig 2: Identifying Return Spring And Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Apply ATF to the lip of transfer clutch piston seal, then install.

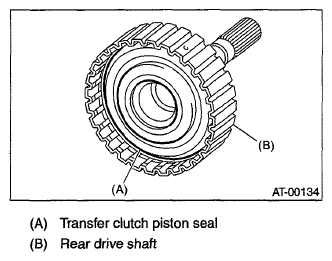

Fig 3: Identifying Transfer Clutch Piston Seal And Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Attach the ST to the rear drive shaft.
ST 499257300 SNAP RING OUTER GUIDE

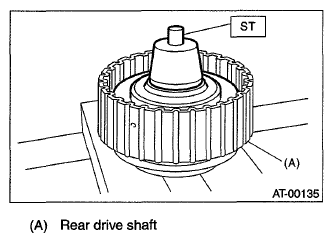

Fig 4: Identifying ST 499257300 Snap Ring Outer Guide On Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to the ST.
ST 499257300 SNAP RING OUTER GUIDE

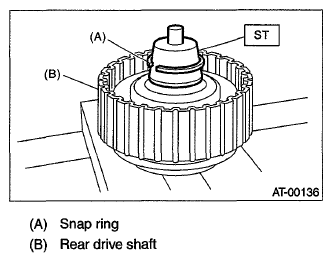

Fig 5: Identifying ST 499257300 Snap Ring Outer Guide
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to the rear drive shaft using ST1 and ST2.
ST1 499257300 SNAP RING OUTER GUIDE

ST2 499247400 INSTALLER

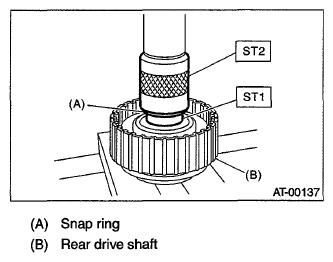

Fig 6: Installing Snap Ring To Rear Drive Shaft Using ST1 499257300 Snap Ring Outer Guide And ST2 499247400 Installer
Courtesy of SUBARU OF AMERICA, INC.
Install the driven plate, drive plate, retaining plate and snap ring.

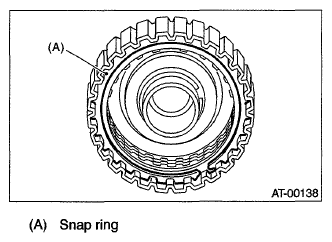

Fig 7: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air to see if the assembled parts move smoothly.

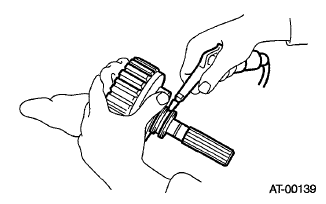

Fig 8: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Check clearance between the snap ring and pressure plate. Refer to INSPECTION , Transfer Clutch.
Press-fit new ball bearing using ST.
ST 899580100 INSTALLER

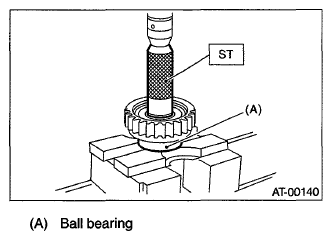

Fig 9: Pressing Ball Bearing Using ST 899580100 Installer
Courtesy of SUBARU OF AMERICA, INC.
Apply Vaseline to a new seal ring and attach to the seal ring groove of the rear drive shaft.
NOTE: While installing the seal ring, not to stretch the seal ring excessively.

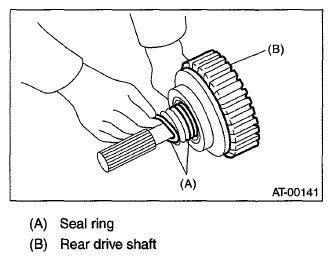

Fig 10: Installing Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly while taking care not to damage the seal ring.

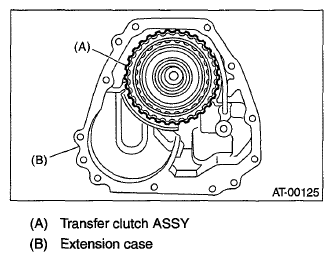

Fig 11: Identifying Transfer Clutch Assembly And Extension Case
Courtesy of SUBARU OF AMERICA, INC.
