Transfer Clutch: Installation

Select the thrust needle bearing. Refer to ADJUSTMENT , Transfer Clutch.
Install the transfer clutch assembly to the case.

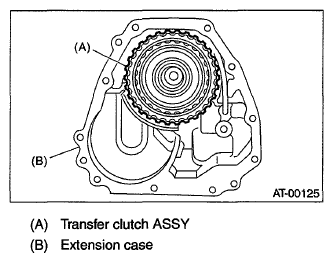

Fig 1: Identifying Transfer Clutch Assembly And Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts to secure the case.
Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 2: Identifying Extension Case Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
