Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover and disconnect the connector.
  3. Disconnect the connector from TCM.

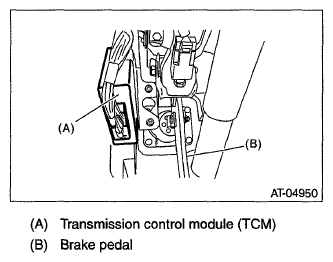

    Fig 1: Identifying Brake Pedal And Transmission Control Module (TCM)
    G06337225Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM.
