Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

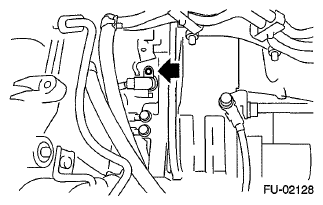

Fig 1: Locating Crankshaft Position Sensor

Courtesy of SUBARU OF AMERICA, INC.
