Intake Manifold: Disassembly

  1. Remove the engine harness from intake manifold.
  2. Remove the throttle body. Refer to REMOVAL , Throttle Body.
  3. Remove the EGR valve. Refer to REMOVAL , EGR Valve.
  4. Remove the manifold absolute pressure sensor. Refer to REMOVAL , Manifold Absolute Pressure Sensor.
  5. Remove the purge control solenoid valve. Refer to REMOVAL , Purge Control Solenoid Valve.
  6. Loosen the clamp which holds fuel injector pipe to the fuel hose, and then disconnect the pipe from fuel hose.

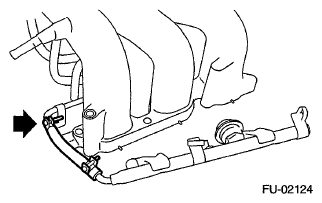

    Fig 1: Locating Fuel Hose Clamp Screw
    G06336064Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bolts which install fuel pipes on intake manifold.

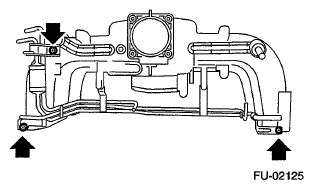

    Fig 2: Locating Fuel Pipes Bolts
    G06336065Courtesy of SUBARU OF AMERICA, INC.

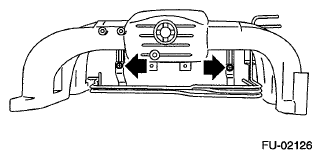

    Fig 3: Locating Fuel Pipes Bolts
    G06336066Courtesy of SUBARU OF AMERICA, INC.
