Throttle Body: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

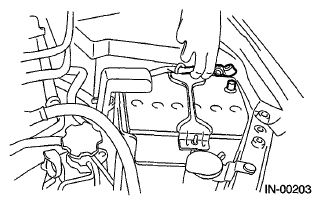

    Fig 1: Disconnecting Battery Ground Cable
    G06336035Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
  4. Disconnect the connector from throttle body.

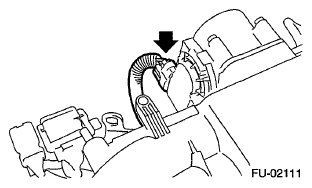

    Fig 2: Locating Throttle Body Connector
    G06336036Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the engine coolant hoses (A) from the throttle body.
  6. Remove the bolts (B) which secure throttle body to intake manifold.

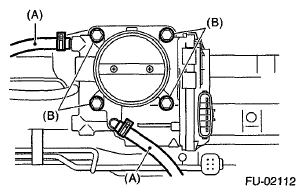

    Fig 3: Identifying Engine Coolant Hoses And Throttle Body Bolts
    G06336037Courtesy of SUBARU OF AMERICA, INC.
