Extension Case: Assembly

  1. Press-fit the new oil seal using ST and the press.

    ST 498057300 INSTALLER

  2. Press-fit the dust cover.
  3. Insert the transfer clutch assembly, spring retainer, return spring and clutch spring retainer.

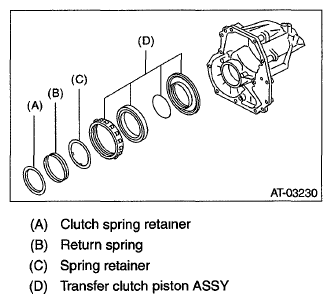

    Fig 1: Identifying Clutch Spring Retainer, Return Spring And Spring Retainer
    G06337693Courtesy of SUBARU OF AMERICA, INC.
  4. Using the ST and compressor, install the snap ring.

    ST 18762AA000 COMPRESSOR SPECIAL TOOL

    Fig 2: Installing Snap Ring Using ST Compressor
    G05022295Courtesy of SUBARU OF AMERICA, INC.
  5. Install the transfer clutch. Refer to INSTALLATION , Transfer Clutch.
  6. Install the multi-plate hub assembly.
