Transmission Mounting

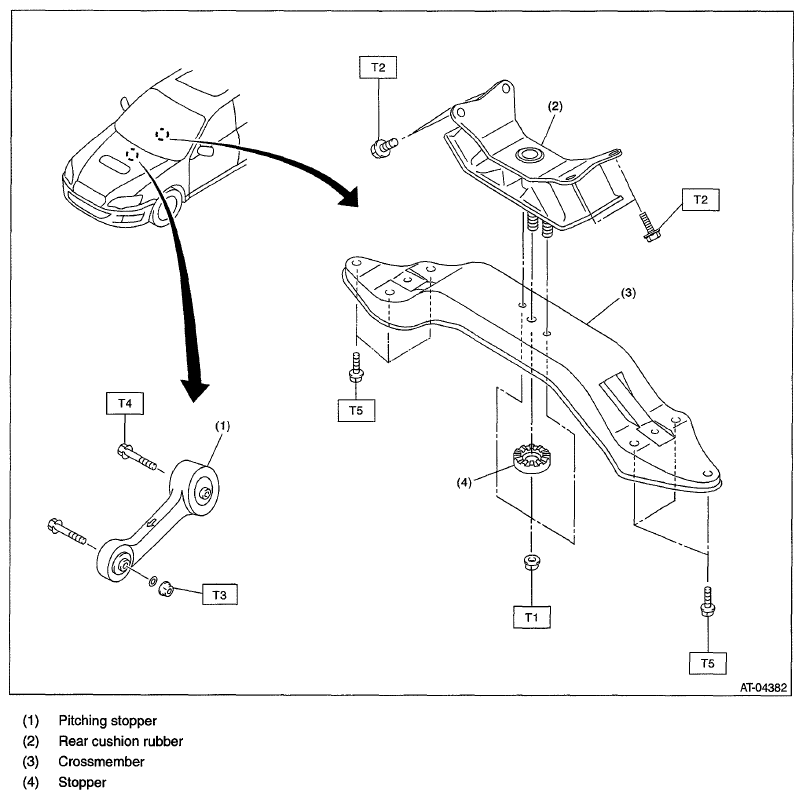

Fig 1: Transmission Mounting Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1. 35(3.6,25.8)

T2: 40(4.1,29.5)

T3: 50(5.1,36.9)

T4: 58(5.9,42.8)

T5: 75(7.6,55.3)
