LH Side

  1. Remove the collector cover.
  2. Remove the battery and battery carrier.
  3. Remove the bracket (A).
  4. Disconnect the connector (B) from ignition coil.
    Fig 1: Identifying Bracket With Ignition Coil Connector
    G05668091Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the ignition coil.
    NOTE: Turn the #6 ignition coil to remove it.
  6. Remove the spark plug with a spark plug socket.
    Fig 2: Removing Spark Plug
    G05018962Courtesy of SUBARU OF AMERICA, INC.

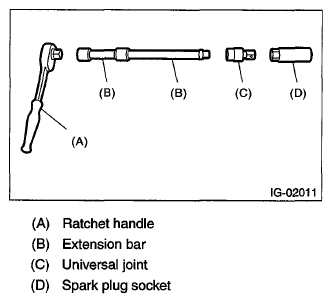

    Fig 3: Identifying Ratchet Handle, Extension Bar, Universal Joint And Spark Plug
    G06342391Courtesy of SUBARU OF AMERICA, INC.
