Shock Absorber

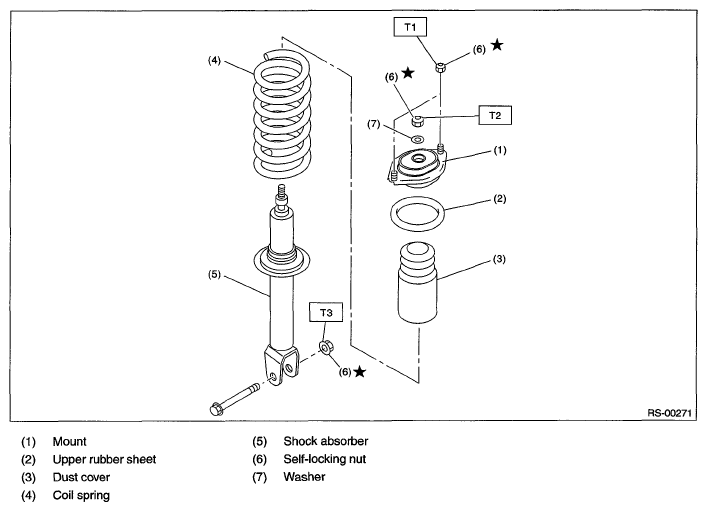

Fig 1: Identifying Shock Absorber Components

G06343206

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30(3.1,22.4)

T2: 35(3.6,26)

T3: 120(12.2,89)
