Oil Pump ASSY

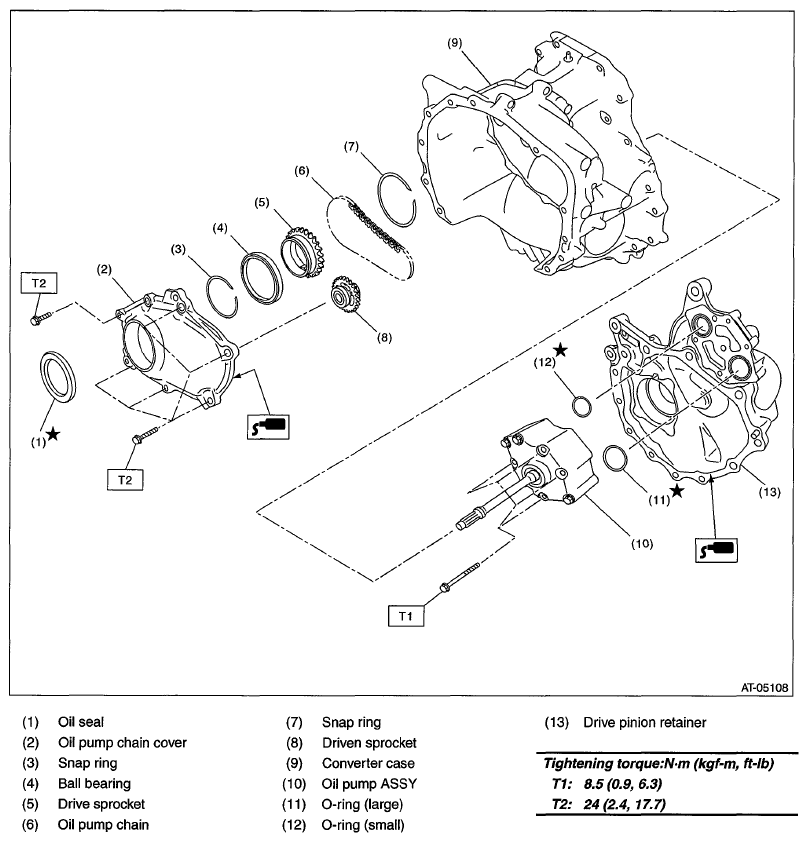

Fig 1: Oil Pump Assy Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 24 (2.4, 17.7)
