Control Module

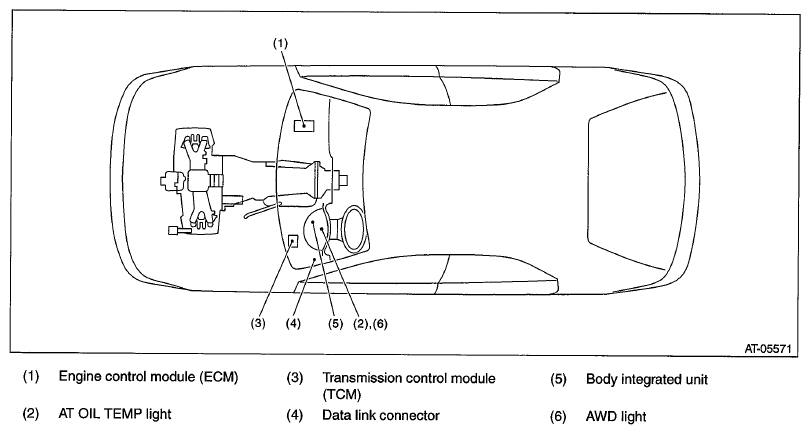

Fig 1: Identifying Control Module Electrical Component Location (1 Of 2)
G06654802Courtesy of SUBARU OF AMERICA, INC.

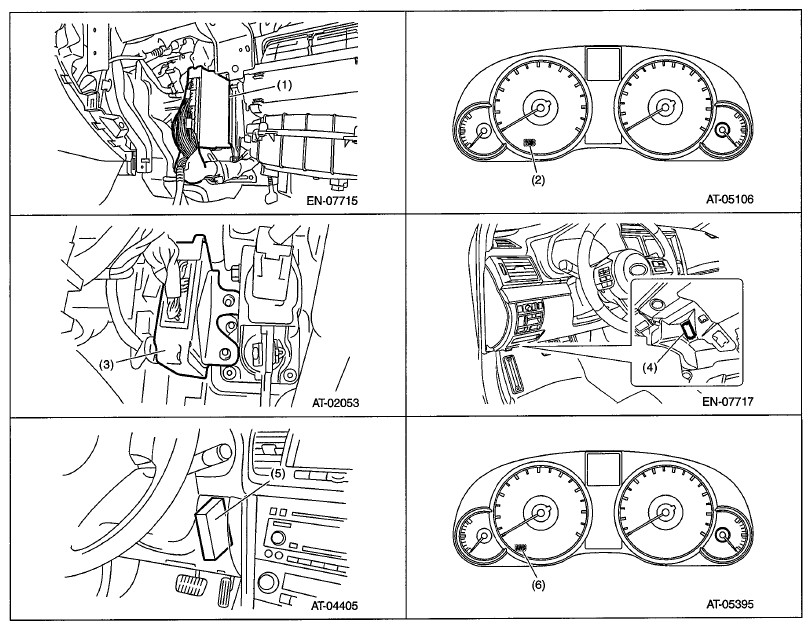

Fig 2: Identifying Control Module Electrical Component Location (2 Of 2)
G06654803Courtesy of SUBARU OF AMERICA, INC.
