Extension Case: Assembly

  1. Press-fit the oil seal using the ST and press.
    NOTE: Use a new oil seal.

    ST 498057300 INSTALLER

  2. Press-fit the dust cover.
  3. Insert the transfer clutch assembly, spring retainer, return spring and clutch spring retainer.

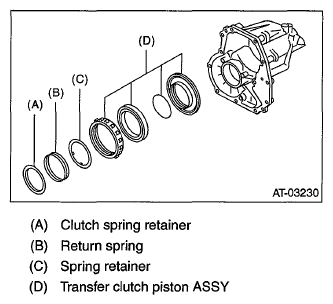

    Fig 1: Identifying Transfer Clutch Assembly, Spring Retainer, Return Spring And Clutch Spring Retainer
    G06652050Courtesy of SUBARU OF AMERICA, INC.
  4. Using the ST and compressor, install the snap ring.

    ST 18762AA000 COMPRESSOR SPECIAL TOOL

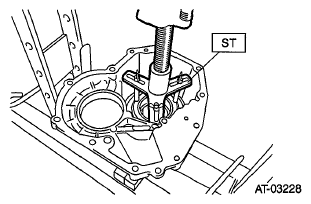

    Fig 2: Installing Snap Ring
    G06652051Courtesy of SUBARU OF AMERICA, INC.
  5. Install the transfer clutch. Ref. to INSTALLATION , Transfer Clutch.
  6. Install the rear drive shaft.
