AT Shift Lock Control System: Wiring Diagram

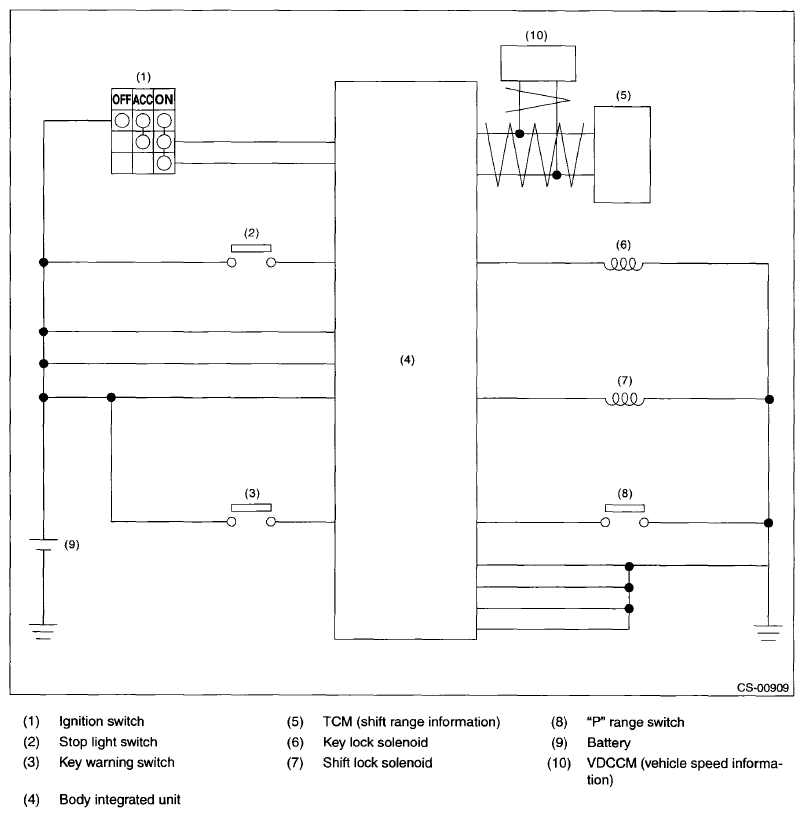

Fig 1: AT Shift Lock Control System Wiring Diagram

G07679991

Courtesy of SUBARU OF AMERICA, INC.
