Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.

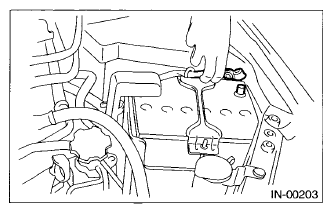

    Fig 1: Disconnecting Ground Cable From Battery
    G07656994Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

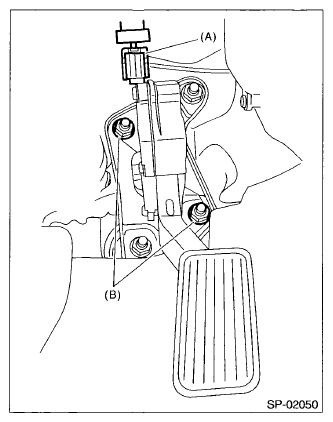

    Fig 2: Identifying Accelerator Pedal Nut And Connector
    G07656995Courtesy of SUBARU OF AMERICA, INC.
