Components With Torque Specifications

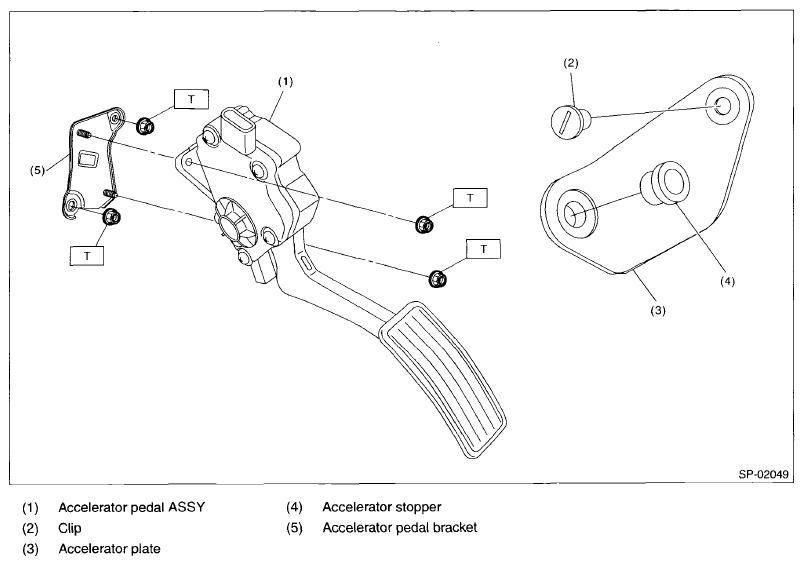

Fig 1: Identifying Accelerator Pedal ASSY, Accelerator Stopper, Accelerator Pedal Bracket And Accelerator Plate

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
