Components With Torque Specifications

• Non-turbo model

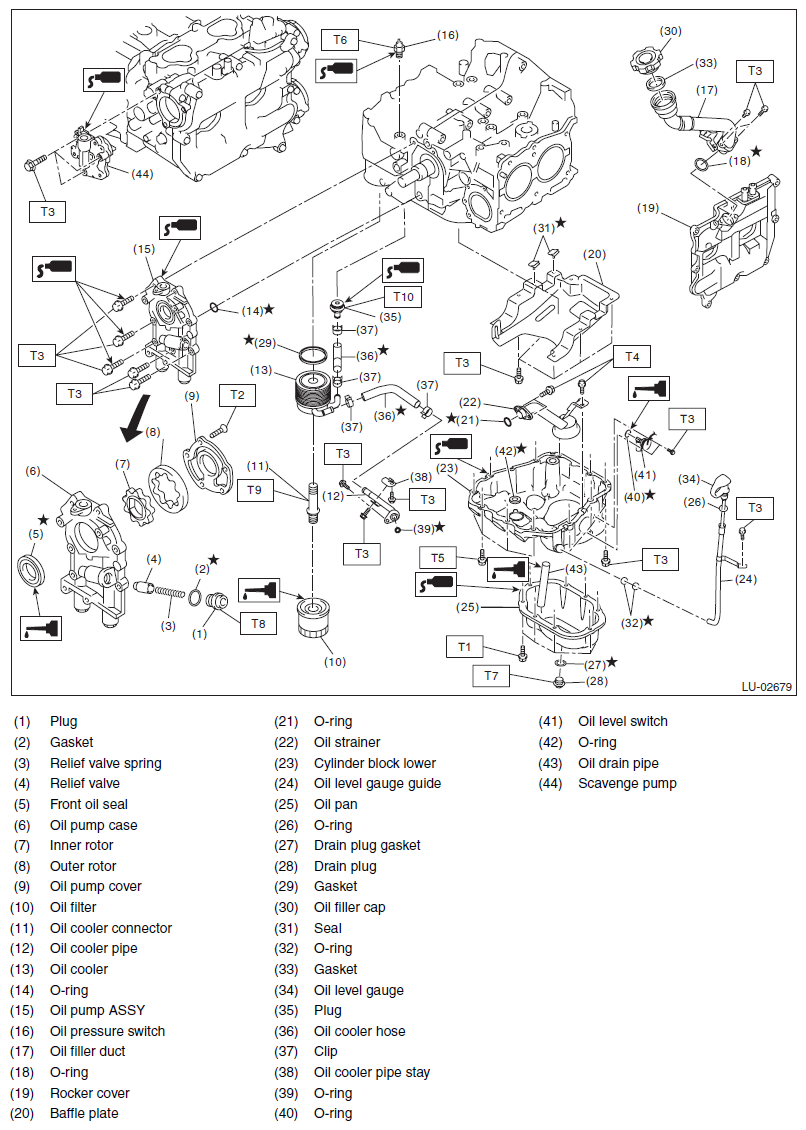

  Fig 1: Exploded View Of Engine (Non-Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 5.4 (0.6, 4.0)

T3: 6.4 (0.7, 4.7)

T4: 10 (1.0, 7.4)

T5: 16 (1.6, 11.8)

T6: 25 (2.5, 18.4)

T7: 41.7 (4.3, 30.8)

T8: 44 (4.5, 32.5)

T9: 45 (4.6, 33.2)

T10: 70 (7.1, 51.6)

• Turbo model

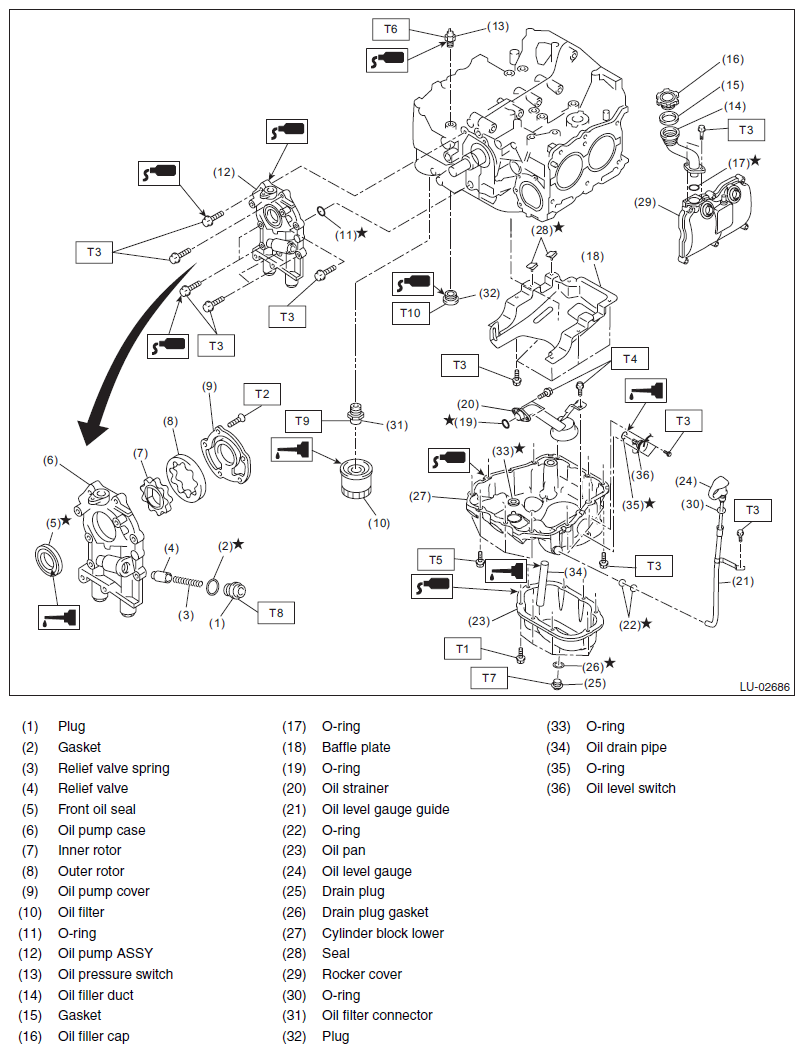

  Fig 2: Exploded View Of Engine (Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 5.4 (0.6, 4.0)

T3: 6.4 (0.7, 4.7)

T4: 10 (1.0, 7.4)

T5: 16 (1.6, 11.8)

T6: 25 (2.5, 18.4)

T7: 41.7 (4.3, 30.8)

T8: 44 (4.5, 32.5)

T9: 54 (5.5, 39.8)

T10: 69 (7.0, 50.9)
