Combination Switch (Light): Inspection: Notes

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the combination switch (light) connector.
  2. Measure the resistance between combination switch (light) connector terminals.

    Preparation tool: Circuit tester

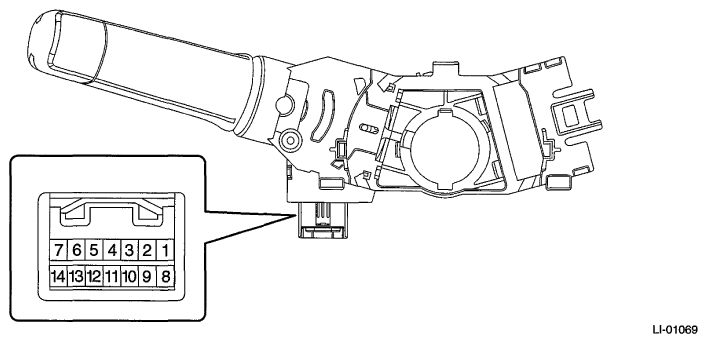

    Fig 1: Identifying Combination Switch (Light) Connector Terminals
    G06653426Courtesy of SUBARU OF AMERICA, INC.
  3. Replace the combination switch (light) if the inspection result is not within the standard value.
