Light Control Sensor: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The light control sensor is integrated with the sunload sensor.

Disconnect the ground cable from battery.
Remove the light control sensor.

CAUTION: Be careful not to damage the sensors and interior trims when removing.

Release the claws and clips, then detach the side speaker cover (RH).

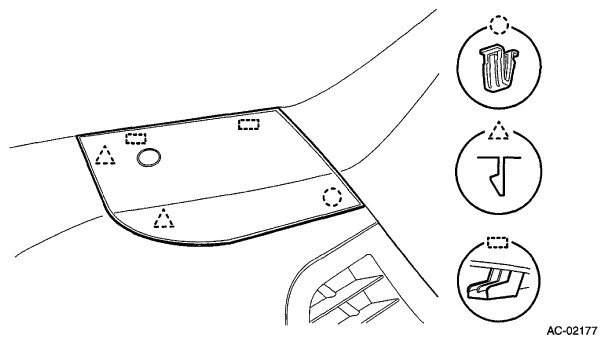

Fig 1: Identifying Side Speaker Cover (RH) Claws And Clips
Courtesy of SUBARU OF AMERICA, INC.
Push out the light control sensor by pressing the left and right claws.
Disconnect the connector, and remove the light control sensor.

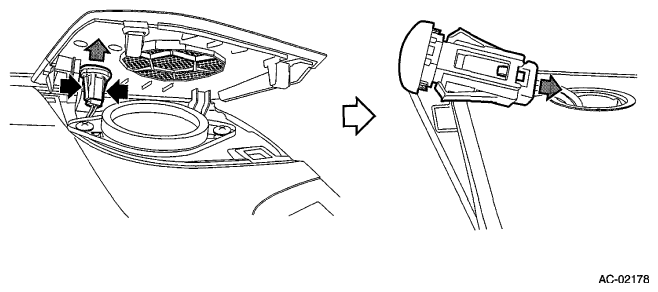

Fig 2: Disconnecting Light Control Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
