Check Each Vehicle Signal: Notes

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to "ON" with audio unit OFF. Next, while pressing the station preset "1" button, press and hold the station preset buttons in order, from "4" to "6" (or "6" to "4"), keep all four buttons pressed for 1.5 seconds.
    NOTE: To exit the diagnostic mode, turn the ignition switch from ACC OFF to ON.
  2. When «System Diagnostic Menu» is displayed, select {Confirmation/Adjustment} by SCROLL/TUNE dial, then press ENTER/SETTING key (SCROLL/TUNE dial).
    Fig 1: Screen Display - Confirmation/Adjustment
    G00523921Courtesy of SUBARU OF AMERICA, INC.
  3. When «System.. > Confirmation/Adjustment» is displayed, select {Vehicle Signals} by SCROLL/TUNE dial, then press ENTER/SETTING key (SCROLL/TUNE dial).

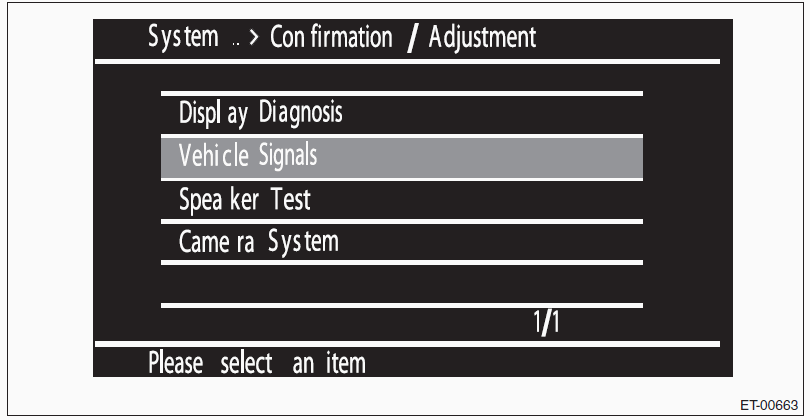

    Fig 2: Screen Display - Vehicle Signals
    G00523922Courtesy of SUBARU OF AMERICA, INC.
