Shock Absorber

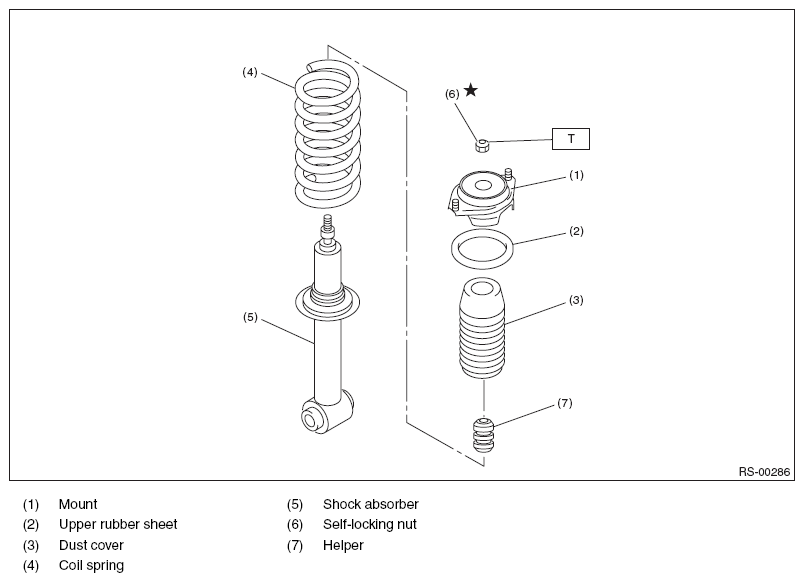

Fig 1: Shock Absorber Component With Torque Specification

G07913999

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.55, 18.4)
