Main Switch

Check output from the power window main switch to driver's side motor using the oscilloscope function in the Subaru Select Monitor.

CAUTION: Since the driver's side power window switch is controlled by CPU, do not check continuity for switch alone with the circuit tester. Performing continuity check with circuit tester may damage the driver's side power window switch circuit.
  1. Disconnect the ground cable from battery.
  2. Remove the power window main switch. < Ref. to REMOVAL , Power Window Control Switch. >
  3. Connect the battery and the Subaru Select Monitor to the power window main switch connector.
    CAUTION: Never mix up the terminals when connecting the power window main switch connector and battery. If connected to a wrong terminal, the power window main switch may be damaged.
    NOTE:
    • When the battery is connected to the power window main switch, the letters "AUTO" on the driver's side knob illuminates.
    • For detailed procedures, refer to SYSTEM WIRING DIAGRAMS .

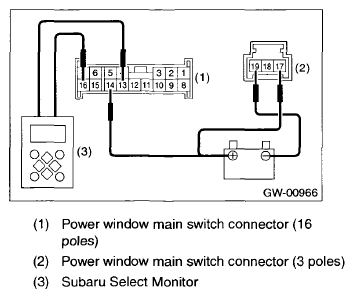

      Fig 1: Connecting Battery And Subaru Select Monitor To Power Window Main Switch Connector
      G07680394Courtesy of SUBARU OF AMERICA, INC.
  4. Operate the driver's side power window switch knob and check the output.
    NOTE: Since output time during window UP operation is extremely short, it cannot be checked without using a measuring instrument such as oscilloscope. Output is constantly produced while the knob is operated for window DOWN operation.
    • Model without auto-reverse function
      CONNECTOR TERMINALS REFERENCE CHART

      Switch knob position Output time Standard
      AUTO UP Approx. 600 ms Battery voltage
      UP During switch knob operation
      OFF - 0 V
      DOWN During switch knob operation Battery voltage
      AUTO DOWN Approx. 600 ms
    • Model with auto-reverse function
      CONNECTOR TERMINALS REFERENCE CHART

      Switch knob position Output time Standard
      AUTO UP Approx. 200 ms Battery voltage
      UP
      OFF - 0 V
      DOWN During switch knob operation Battery voltage
      AUTO DOWN Approx. 300 ms
  5. Replace the power window main switch if the inspection result is not within the standard value.
    • Except for driver's seat
      1. Check the resistance between switch terminals.

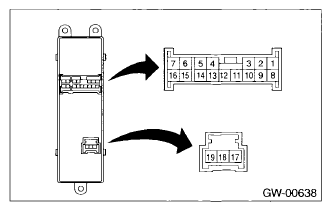

        Fig 2: Checking Resistance Between Switch Terminals
        G07680395Courtesy of SUBARU OF AMERICA, INC.
        CONNECTOR TERMINALS REFERENCE CHART

          Switch position Terminal No. Standard
        Passenger's seat UP 14 and 8
        12 and 19        		 Less than 1 Ω
        OFF 14 and 12
        14 and 8        		 1 MΩ or more
        8 and 12
        8 and 19
        12 and 19        		 Less than 1 Ω
        DOWN 14 and 12
        8 and 19        		 Less than 1 Ω
        Rear LH UP 14 and
        7 5 and 19        		 Less than 1 Ω
        OFF 14 and 7
        14 and 5        		 1 MΩ or more
        19 and 7
        19 and 5
        7 and 5        		 Less than 1 Ω
        DOWN 14 and 5
        7 and 19        		 Less than 1 Ω
        Rear RH UP 14 and 1
        3 and 19        		 Less than 1 Ω
        OFF 14 and 1
        14 and 3        		 1 MΩ or more
        19 and 3
        19 and 1
        3 and 1        		 Less than 1 Ω
        DOWN 14 and 3
        1 and 19        		 Less than 1 Ω
      2. Replace the power window main switch if the inspection result is not within the standard value.
