Power Window Control Switch: Inspection: Sub-Switch

  1. Remove the sub-switch. < Ref. to SUB-SWITCH , REMOVAL, Power Window Control Switch. >
  2. Check the resistance between sub-switch terminals.

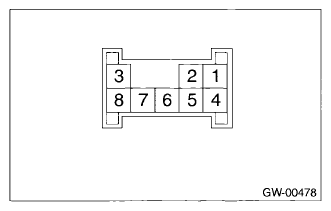

    Fig 1: Checking Resistance Between Sub-Switch Terminals
    G07680396Courtesy of SUBARU OF AMERICA, INC.
    CONNECTOR TERMINALS REFERENCE CHART

      Switch position Terminal No. Standard
    Passenger seat, rear UP 4 and 5
    6 and 7    		 Less than 1 Ω
    OFF 7 and 4
    8 and 4    		 1 MΩ or more
    5 and 8
    6 and 7    		 Less than 1 Ω
    DOWN 4 and 6
    5 and 8    		 Less than 1 Ω
  3. Replace the power window sub-switch if the inspection result is not within the standard value.
