Main Switch

  1. Disconnect the ground cable from battery.
  2. Remove the power window switch panel.

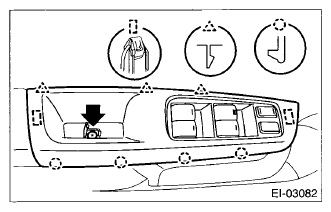

    Fig 1: Locating Power Window Switch
    G07680388Courtesy of SUBARU OF AMERICA, INC.
    1. Open the cover and remove the screws.
    2. Lift up the tip of switch panel by using a plastic remover.

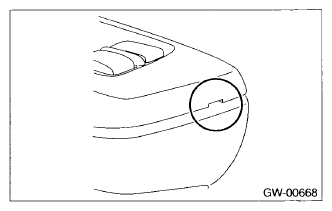

      Fig 2: Switch Panel Tip
      G07680389Courtesy of SUBARU OF AMERICA, INC.
    3. Disengage the end face tabs by using a plastic remover.

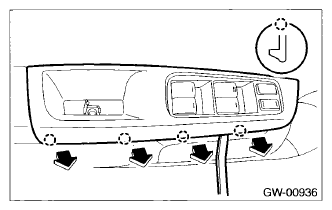

      Fig 3: Disengaging End Face Tabs Using Plastic Remover
      G07680390Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the power window switch panel.
  3. Disconnect the main switch connector.
  4. Remove the screws to remove the power window main switch assembly.
