Remote Control Mirror Switch: Inspection

  1. Disconnect the remote control mirror switch connector.
  2. Check the resistance between remote control mirror switch terminals.

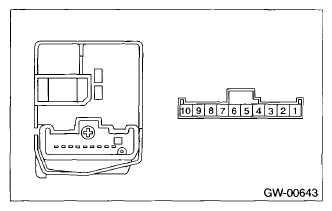

    Fig 1: Checking Resistance Between Remote Control Mirror Switch Terminals
    G07680407Courtesy of SUBARU OF AMERICA, INC.
    • Switch the change over switch to the right side.
      CONNECTOR TERMINALS REFERENCE CHART

      Switch position Terminal No. Standard
      OFF - 1 MΩ or more
      UP 8 and 3, 6 and 7 Less than 1 Ω
      DOWN 8 and 6, 3 and 7 Less than 1 Ω
      LEFT 8 and 2, 6 and 7 Less than 1 Ω
      RIGHT 8 and 6, 2 and 7 Less than 1 Ω.
    • Switch the change over switch to the left side.
      CONNECTOR TERMINALS REFERENCE CHART

      Switch position Terminal No. Standard
      OFF - 1 MΩ or more
      UP 8 and 4, 6 and 7 Less than 1 Ω
      DOWN 8 and 6, 4 and 7 Less than 1 Ω
      LEFT 8 and 5, 6 and 7 Less than 1 Ω
      RIGHT 8 and 6, 5 and 7 Less than 1 Ω
    • Folding switch
      CONNECTOR TERMINALS REFERENCE CHART

      Switch position Terminal No. Standard
      Folding 8 and 9, 7 and 10 Less than 1 Ω
      Unfolding 8 and 10, 7 and 9 Less than 1 Ω
  3. Replace the remote control mirror switch if the inspection result is not within the standard value.
