Fuel Injector: Installation

Install in the reverse order of removal.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

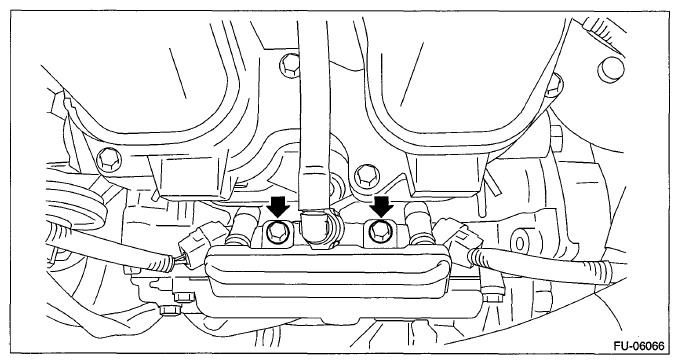

Fig 1: Locating Fuel Injector Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

• LH side

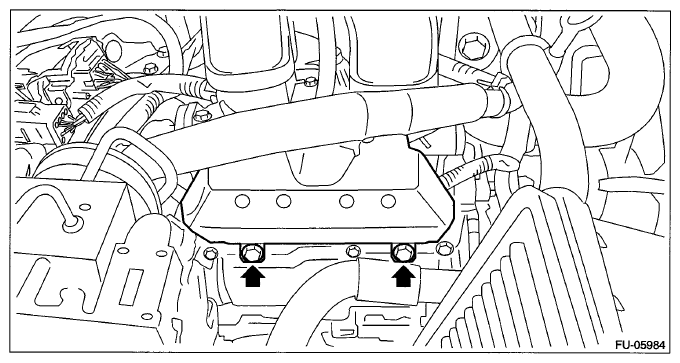

  Fig 2: Locating Intake Manifold Protector Mounting Bolts

  Courtesy of SUBARU OF AMERICA, INC.
• RH side

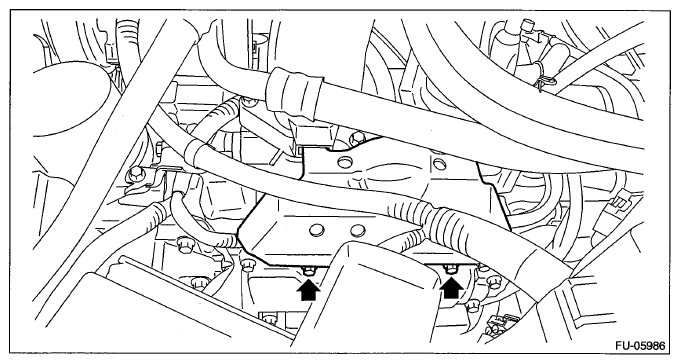

  Fig 3: Locating Intake Manifold Protector Mounting Bolt

  Courtesy of SUBARU OF AMERICA, INC.
• Tightening torque:

  3 N.m (0.3 kgf-m, 2.2 ft-lb)

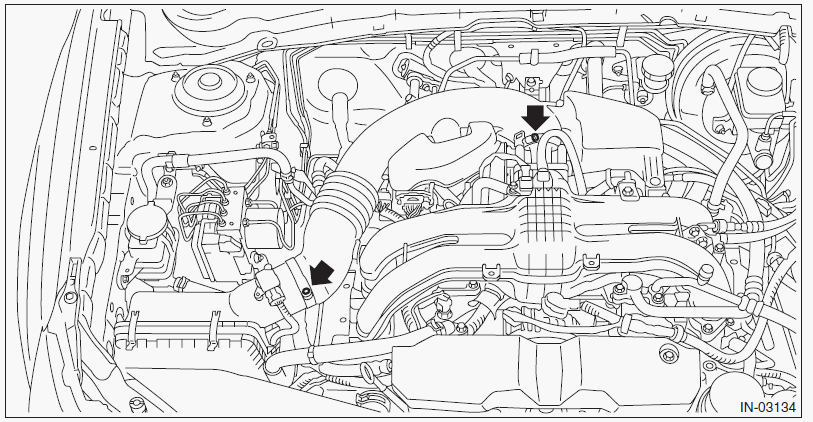

  Fig 4: Identifying Air Intake Boot Clamps

  Courtesy of SUBARU OF AMERICA, INC.
