Knock Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

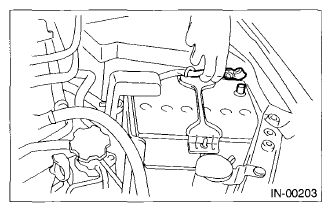

    Fig 1: Disconnecting Ground Cable From Battery
    G07670453Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
  4. Disconnect the connector from the knock sensor.

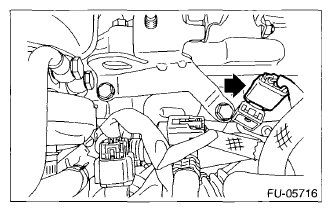

    Fig 2: Locating Knock Sensor Connector
    G07670454Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the knock sensor from cylinder block.

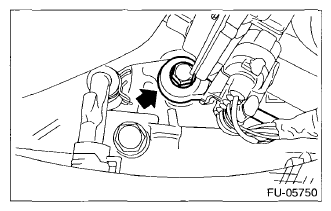

    Fig 3: Locating Knock Sensor From Cylinder Block
    G07670455Courtesy of SUBARU OF AMERICA, INC.
