RH Side

  1. Disconnect the ground cable from battery.

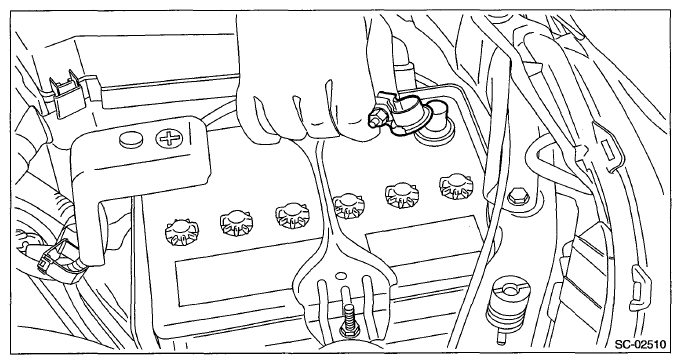

    Fig 1: Disconnecting Ground Cable From Battery
    G07665101Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case >
  3. Disconnect the connector from ignition coil.
  4. Remove the ignition coil.
    Fig 2: Locating Ignition Coil Bolts (RH Side)
    G07664566Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
