Jack-up point

CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.

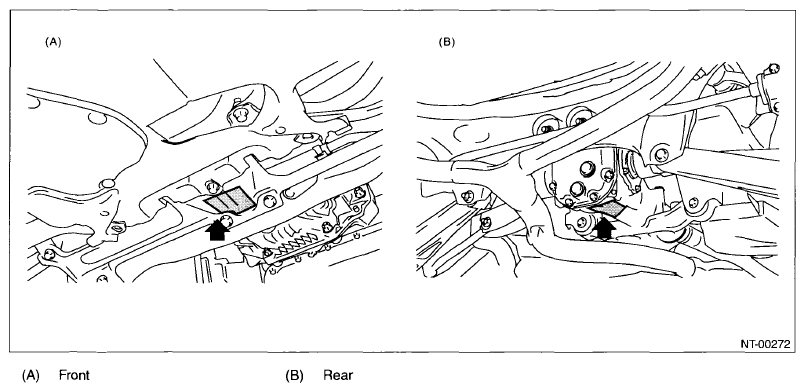

Fig 1: Locating Jack-Up Points
G07664474Courtesy of SUBARU OF AMERICA, INC.
