Tire Rotation: Inspection

When the tread has worn down to less than 1.6 mm (0.063 in) or the wear indicator appears across the tread, replace the tire. (Replace the right and left tire as a set.)

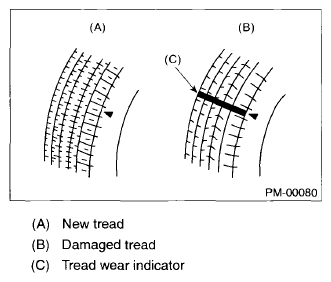

Fig 1: New And Damaged Tread
Courtesy of SUBARU OF AMERICA, INC.
If the tire appears to be worn unevenly, adjust the wheel alignment.
Next, make a tire rotation between front and rear as shown in the illustration, make sure tires are worn evenly.
- When the direction of tire rotation is not specified

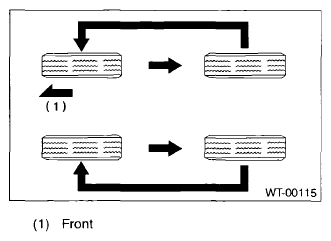

  Fig 2: Tire Rotation Pattern (Direction Of Tire Rotation Is Not Specified)
  Courtesy of SUBARU OF AMERICA, INC.
- When the direction of tire rotation is specified

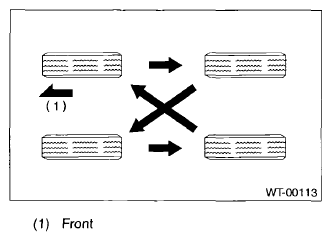

  Fig 3: Tire Rotation Pattern (Direction Of Tire Rotation Is Specified)
  Courtesy of SUBARU OF AMERICA, INC.
