Pipe Assembly: Removal

Disconnect the ground cable from battery.
Lift up the vehicle, and then remove the under cover. Refer to FRONT UNDER COVER
Remove the front crossmember support plate and jack-up plate.
- Large type

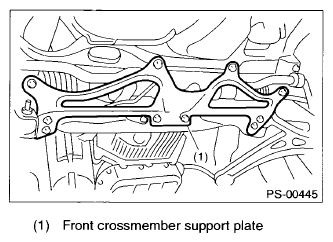

  Fig 1: Front Crossmember Support Plate (Large Type)
  Courtesy of SUBARU OF AMERICA, INC.
- Small type

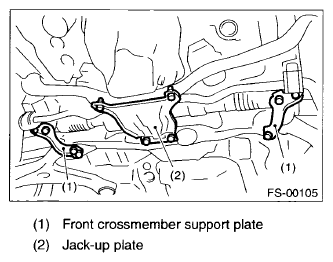

  Fig 2: Front Crossmember Support Plate And Jack-Up Plate (Small Type)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the one pipe joint at the center of the gearbox, and connect the vinyl hose to the pipe and the joint. Discharge the fluid by turning the steering wheel fully clockwise and counterclockwise. Discharge the fluid similarly from other pipes.

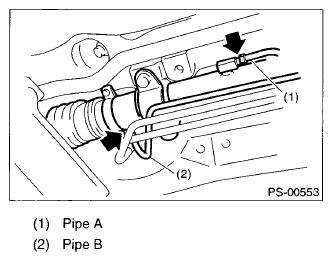

Fig 3: Locating Gear Box Pipe Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp E from return hose and pressure hose.

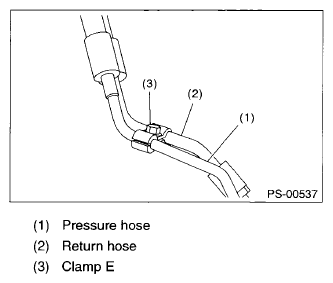

Fig 4: Clamp E, Return Hose And Pressure Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the return hose from return pipe and disconnect the pressure hose from feed pipe.

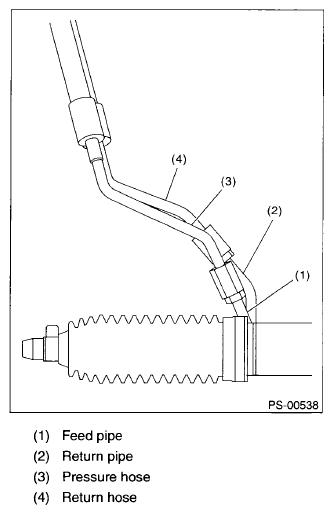

Fig 5: Return Hose, Return Pipe, Pressure Hose And Feed Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct.
- Non-turbo model: < Ref. to REMOVAL , Air Intake Duct. >
- Turbo model: < Ref. to REMOVAL , Air Intake Duct. >
Disconnect the suction hose and pressure hose from oil pump.
- Non-turbo model

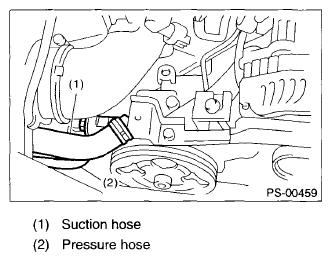

  Fig 6: Suction Hose And Pressure Hose (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

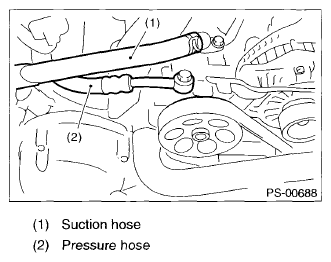

  Fig 7: Suction Hose And Pressure Hose (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the suction hose and return hose from the reservoir tank.

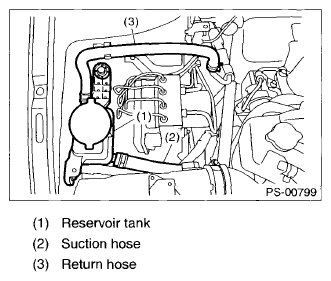

Fig 8: Suction Hose, Return Hose And Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove the hose bracket and take out the hose assembly from vehicle.

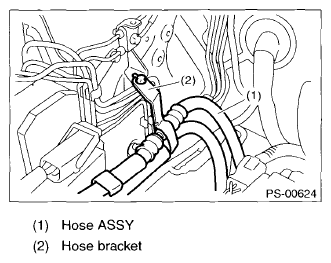

Fig 9: Hose Bracket And Hose Assembly
Courtesy of SUBARU OF AMERICA, INC.
