Extension Case: Removal

  1. Remove the transmission assembly. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Separate the transmission case and extension case section.

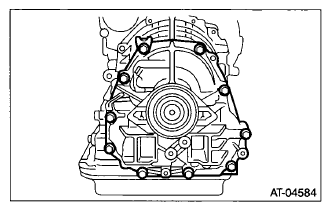

    Fig 1: Extension Case With Bolts
    G07665582Courtesy of SUBARU OF AMERICA, INC.
