Control Valve And Harness Routing

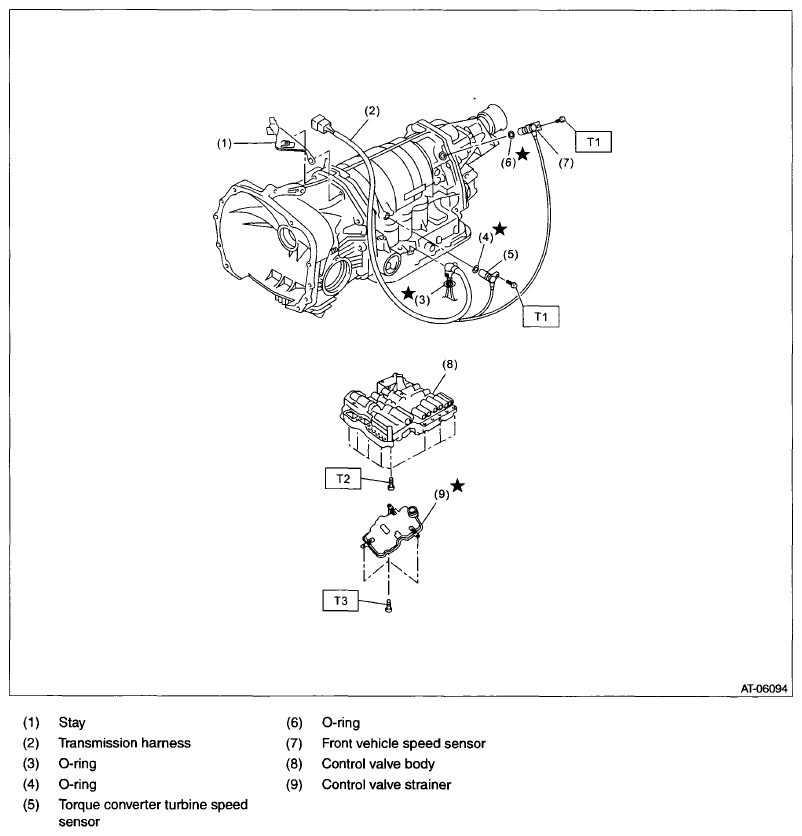

Fig 1: Exploded View Of Control Valve And Harness Routing
G07665369Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.2)

T2: 8 (0.8, 5.9)

T3: 4.6 (0.5, 3.4)
