Torque Converter And Case

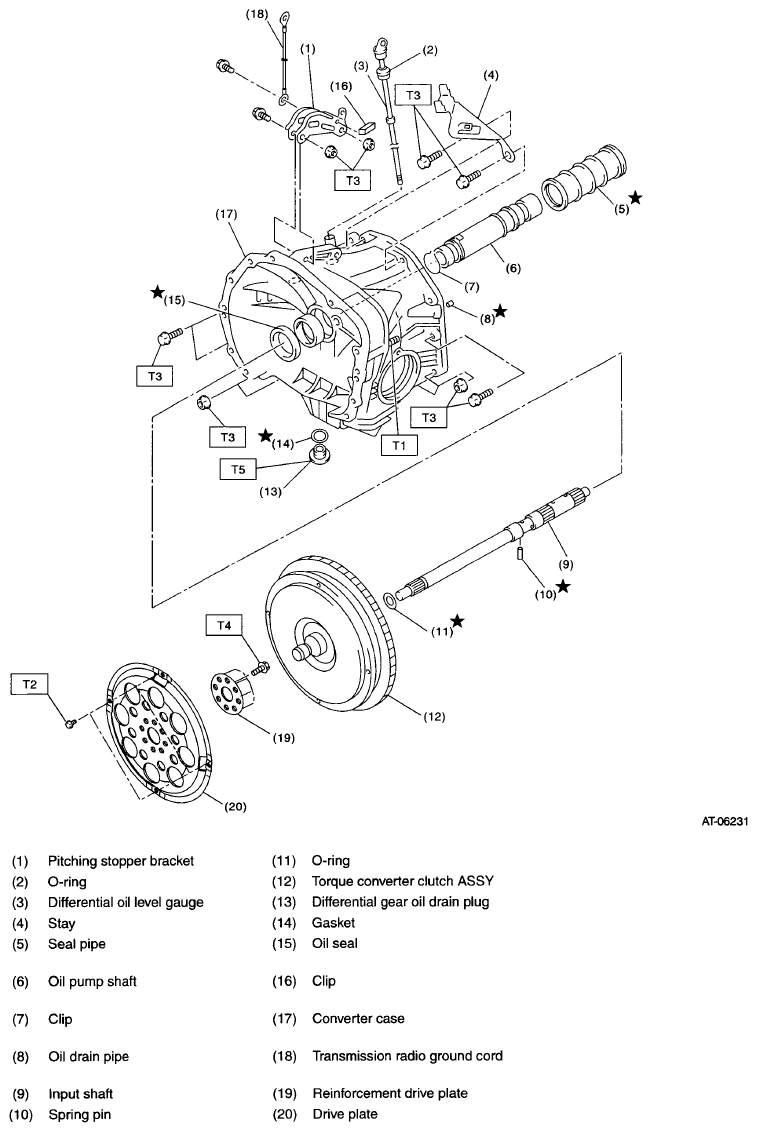

Fig 1: Exploded View Of Torque Converter And Case

G07665366

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 25 (2.5, 18.4)

T3: 41 (4.2, 30.2)

T4: < Ref. to INSTALLATION , Drive Plate. >

T5: 44 (4.5, 32.5) (Aluminum gasket, silver)

70 (7.1, 51.6) (Copper gasket, brown)

70 (7.1, 51.6) (Metal gasket, black)
