Inhibitor Switch: Removal

Set the vehicle on a lift.
Set the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe, (non-turbo model) < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust pipe (rear), (turbo model) < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the snap pin and washer from the shifter arm.

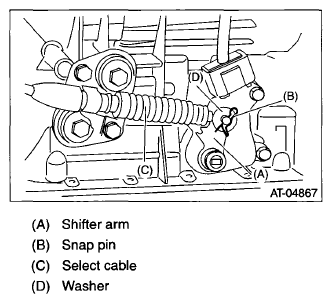

Fig 1: Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

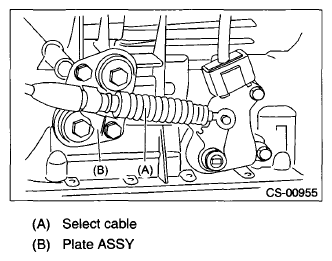

Fig 2: Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch connector from the inhibitor switch.

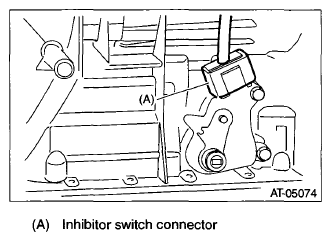

Fig 3: Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the spring pin and remove the shifter arm.
ST 398791600 REMOVER

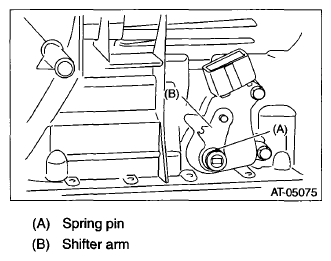

Fig 4: Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the two inhibitor switch securing bolts.

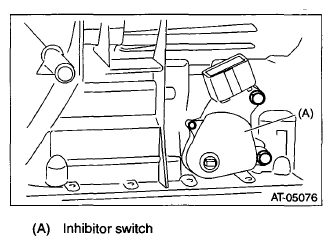

Fig 5: Inhibitor Switch With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from the transmission case.

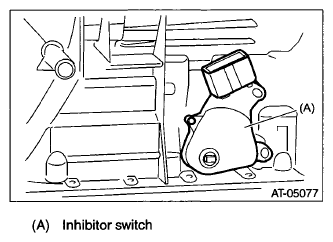

Fig 6: Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
