Reduction Drive Gear: Assembly

  1. Press-fit the reduction drive gear to the reduction drive shaft.
  2. Press-fit the ball bearing to the reduction drive shaft.
    NOTE: Use a new ball bearing.
  3. Apply vaseline onto the seal ring outer surface and shaft grooves.
  4. Apply ATF to the seal ring and install it to the reduction drive shaft.
    NOTE: Use a new seal ring.

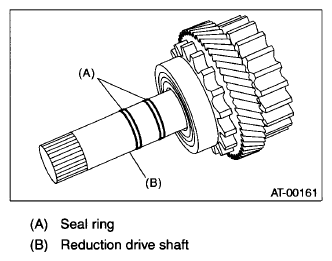

    Fig 1: Seal Ring And Reduction Drive Shaft
    G07665621Courtesy of SUBARU OF AMERICA, INC.
