Reduction Driven Gear: Assembly

  1. Install the snap ring to the gear inner grove on the reduction driven gear.
  2. Install the ball bearing to the reduction driven gear using a press.
    NOTE: Use a new ball bearing.

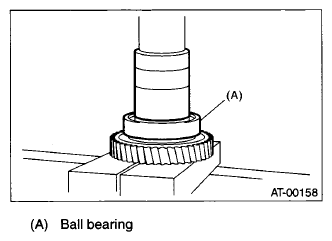

    Fig 1: Pressing Ball Bearing
    G07665614Courtesy of SUBARU OF AMERICA, INC.
  3. Install the snap ring to reduction driven gear.

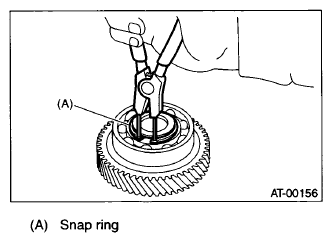

    Fig 2: Installing Snap Ring To Reduction Driven Gear
    G07665615Courtesy of SUBARU OF AMERICA, INC.
