Reduction Driven Gear: Disassembly

  1. Remove the snap ring from reduction driven gear.

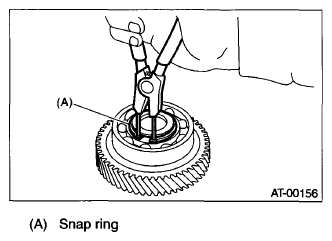

    Fig 1: Removing Snap Ring From Reduction Driven Gear
    G07665612Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ball bearing from reduction driven gear using ST.
    Fig 2: Removing Ball Bearing From Reduction Driven Gear
    G07665613Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the gear inner groove snap ring from the reduction driven gear.
