Transfer Clutch: Assembly

Attach the transfer clutch piston to the rear drive shaft.

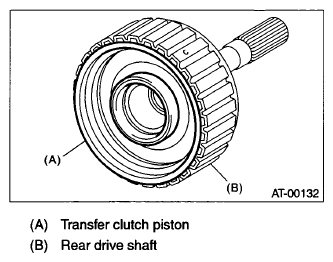

Fig 1: Transfer Clutch Piston And Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the return spring to transfer clutch piston.

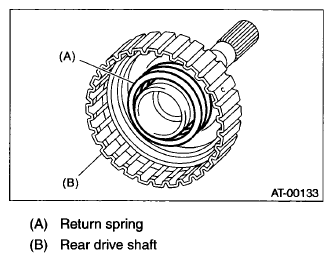

Fig 2: Return Spring And Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Apply ATF to the lip of transfer clutch piston seal, then install.

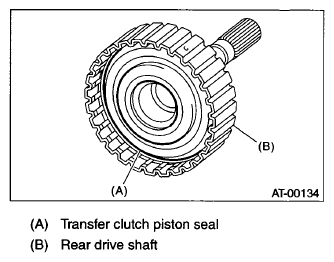

Fig 3: Transfer Clutch Piston Seal And Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Attach the ST to the rear drive shaft.
ST 499257300 SNAP RING OUTER GUIDE

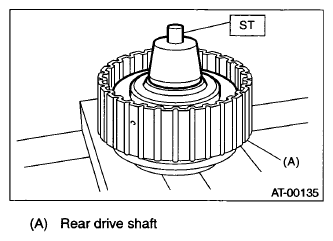

Fig 4: Attaching ST To Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.

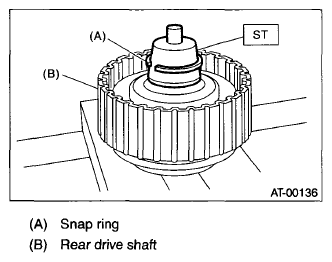

Install the snap ring to the ST.
ST 499257300 SNAP RING OUTER GUIDE

Fig 5: Installing Snap Ring To ST
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to the rear drive shaft using
ST1 and ST2.

ST1 499257300 SNAP RING OUTER GUIDE

ST2 499247400 INSTALLER

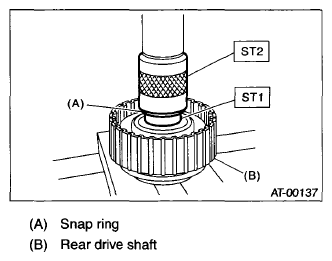

Fig 6: Installing Snap Ring To Rear Drive Shaft Using ST1 And ST2
Courtesy of SUBARU OF AMERICA, INC.
Install the driven plate, drive plate, retaining plate and snap ring.

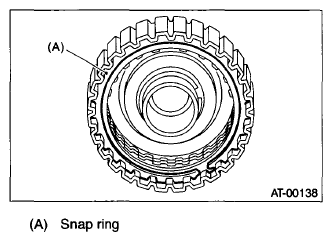

Fig 7: Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air to see if the assembled parts move smoothly.

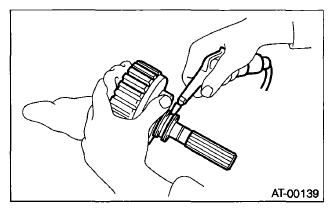

Fig 8: Applying Compressed Air Into Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Check the clearance between the snap ring and retaining plate. < Ref. to INSPECTION , Transfer Clutch. >

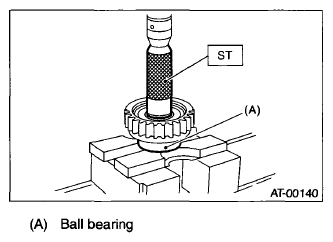

Press-fit the ball bearing using the ST.
NOTE: Use a new ball bearing.
ST 899580100 INSTALLER

Fig 9: Pressing Ball Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.

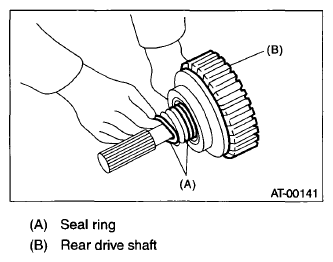

Apply vaseline to the seal ring and attach it to the seal ring groove of the rear drive shaft.
NOTE:
- Use a new seal ring.
- While installing the seal ring, not to stretch the seal ring excessively.

  Fig 10: Applying Vaseline To Seal Ring
  Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly while taking care not to damage the seal ring.

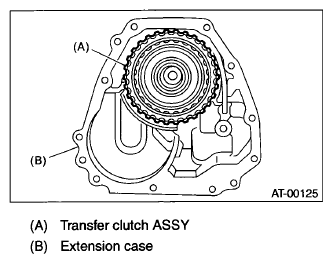

Fig 11: Transfer Clutch Assembly And Extension Case
Courtesy of SUBARU OF AMERICA, INC.
