Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
CAUTION: To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

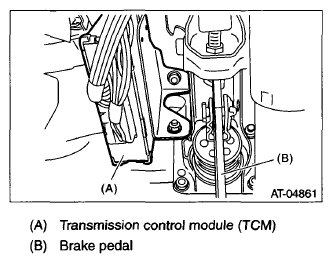

Fig 1: Transmission Control Module And Brake Pedal
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to TCM.
Install in the reverse order of removal.
Perform the diagnosis again. < Ref. to PROCEDURE , Learning Control. >
