Fuel Level Sensor: Inspection

Measure the fuel level sensor float position.

NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

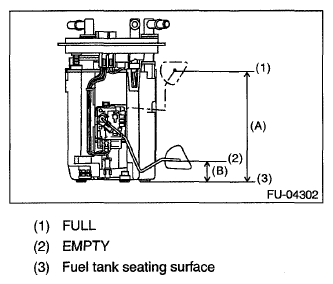

Fig 1: Checking Fuel Level Sensor

Courtesy of SUBARU OF AMERICA, INC.

FLOAT POSITION REFERENCE CHART

Float position	Standard
FULL to Fuel tank seating surface (A)	135±4 mm (5.315±0.157 in)
EMPTY to Fuel tank seating surface (B)	23.7±4 mm (0.933±0.157 in)

Measure the resistance between fuel level sensor terminals.

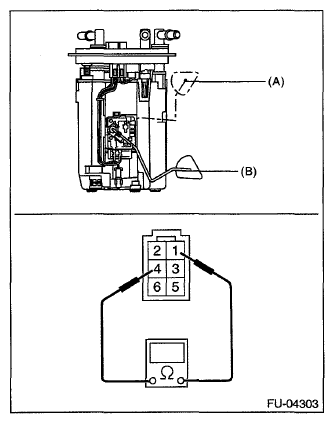

Fig 2: Measuring Resistance Between Fuel Level Sensor Terminals

Courtesy of SUBARU OF AMERICA, INC.

CONNECTOR TERMINALS REFERENCE CHART

Float position	Terminal No.	Standard
FULL (A)	1 and 4	2.0+1.0 Ω
EMPTY (B)	1 and 4	31.9±1.0 Ω
