Fuel Pump Control Unit: Removal

Disconnect the ground cable from battery.

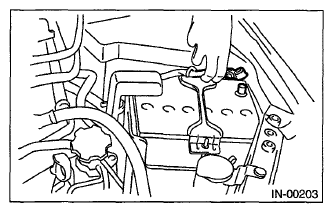

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the right side trunk side trim. (4 door model) < Refer to REMOVAL , Trunk Room Trim. >
Remove the right side rear quarter trim. (5 door model) < Refer to REMOVAL , Rear Quarter Trim. >
Disconnect the connector (A) from the fuel pump control unit, and remove the fuel pump control unit.
- 4 door model

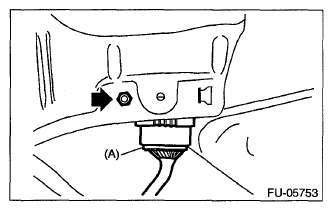

  Fig 2: Locating Fuel Pump Control Unit And Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
- 5 door model

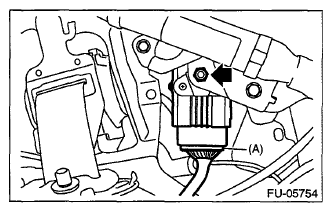

  Fig 3: Locating Fuel Pump Control Unit And Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
