Fuel Sub Level Sensor: Installation

Install in the reverse order of removal while being careful of the following.

• Make sure the sealing portion is free from fuel or foreign matter before installation.
• Align protrusion (A) of the gasket to the position shown in the figure.
• Align protrusion (B) of the fuel sub level sensor to the cutout in the fuel sub level sensor upper plate.
• Tighten the nuts and bolts to the specified torque in the order as shown in the figure.
• After tightening, install the rubber cap (C) at the position shown in the figure.
  NOTE:

  • Use a new gasket.
  • Do not forget to install rubber cap (C).

  Tightening torque:

  4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

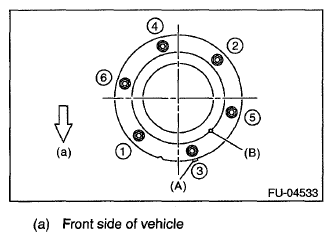

  Fig 1: Identifying Fuel Sub Level Sensor Mounting Bolts Tightening Sequence

  Courtesy of SUBARU OF AMERICA, INC.

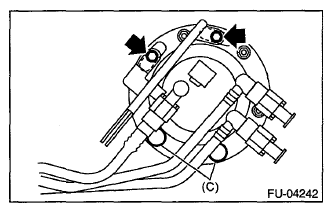

  Fig 2: Locating Fuel Sub Level Sensor Mounting Bolts

  Courtesy of SUBARU OF AMERICA, INC.
