Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

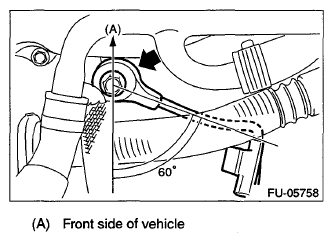

Fig 1: Locating Knock Sensor Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the secondary air combination valve RH. < Refer to SECONDARY AIR COMBINATION VALVE RH , INSTALLATION, Secondary Air Combination Valve. >
Install the intake manifold. < Refer to INSTALLATION , Intake Manifold. >
Install the intercooler. < Refer to INSTALLATION , Intercooler. >
Connect the battery ground terminal.

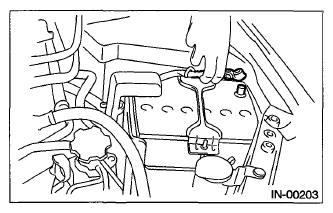

Fig 2: Connecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
