Home >> Subaru >> 2012 >> Impreza WRX STi Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (WRX-STI) >> Main Relay >> Removal

Main Relay: Removal

  1. Disconnect the ground cable from battery.

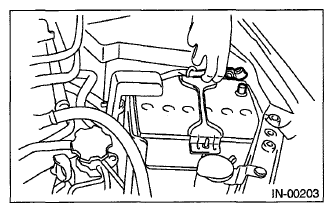

    Fig 1: Disconnecting Ground Cable From Battery
    G07704526Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the main relay from the relay block on the back side of the glove box.

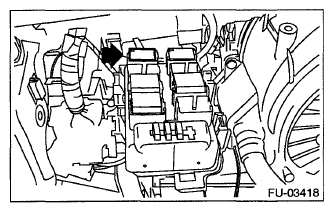

    Fig 2: Locating Main Relay
    G07704527Courtesy of SUBARU OF AMERICA, INC.
