RH Side

Install in the reverse order of removal.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 1: Locating O-Rings And Seal Rings

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

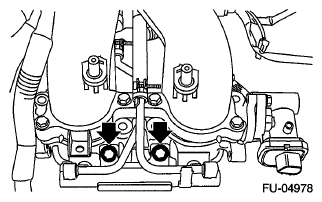

Fig 2: Locating Intake Manifold Protector Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.
