Rear Wheel Toe-In

When adjusting, adjust it to the following value.

Toe-in: Adjustment value

Other than OUTBACK model: 0±2 mm (0±0.08 in)

OUTBACK model: 2±2 mm (0.08±0.08 in)

1. Loosen the self-locking nut for the front lateral link.
   NOTE: When loosening or tightening the adjusting bolt, hold the bolt head and turn the self-locking nut.

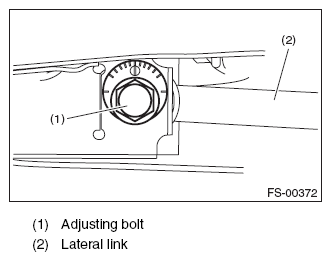

   Fig 1: Identifying Adjusting Bolt And Lateral Link

   Courtesy of SUBARU OF AMERICA, INC.
2. Turn the adjusting bolt until toe-in is within the specification.
   NOTE: When the left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approx. 1.3 mm (0.05 in).

   To increase toe-in.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

   To decrease toe-in.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

3. Attach and tighten a new self-locking nut.

   Tightening torque:

   120 N.m (12.24 kgf-m, 88.5 ft-lb)
