Front Differential Assembly: Inspection

• Check each component for scratches, damage or other faults.
• Inspect the backlash of the pinion gear.

Specification:

0.13 - 0.18 mm (0.0051 - 0.0071 in)

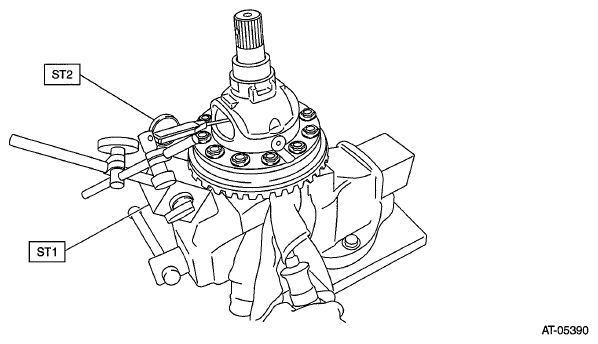

Fig 1: Identifying Front Differential Assembly

Courtesy of SUBARU OF AMERICA, INC.

• Measure the hypoid gear backlash, and then adjust it to be within specification. Refer to , ADJUSTMENT , Front Differential Assembly.
