Home >> Subaru >> 2012 >> Outback Base, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System >> General Description >> Components With Torque Specifications

Components With Torque Specifications

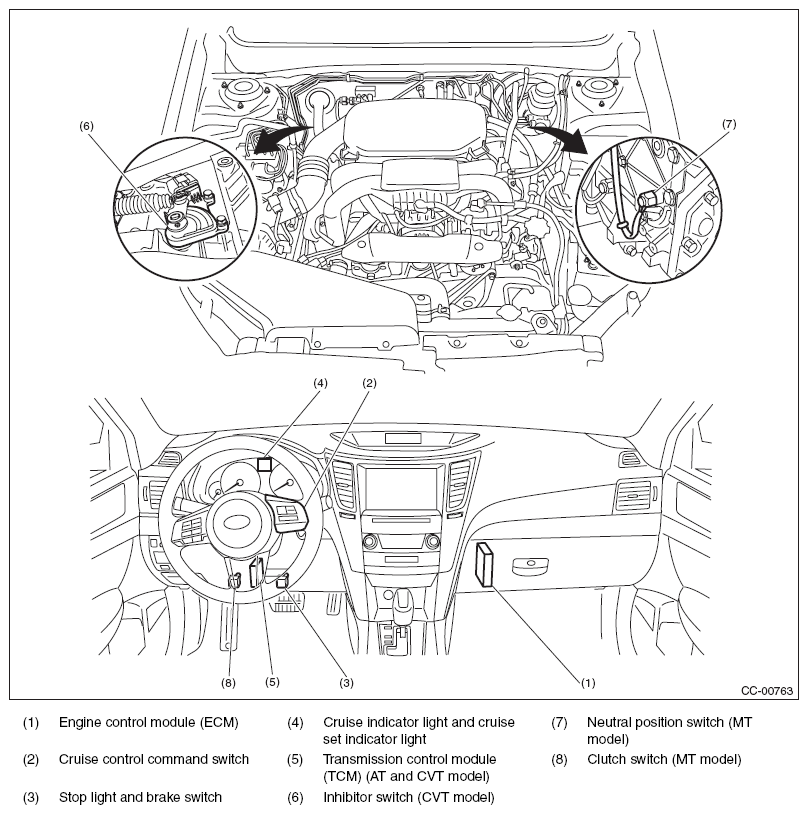

Fig 1: Identifying Electrical Components Location

G07916726

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Inhibitor switch for 5AT model is installed on the valve body assembly.
