Body Integrated Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
  3. Remove the body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
    1. Remove the harness clip and connector.
    2. Remove the bolts, and remove the body integrated unit.

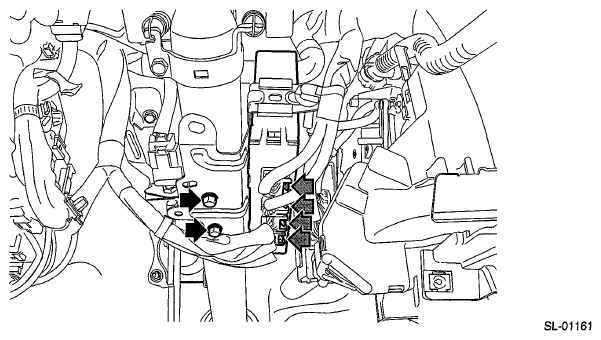

      Fig 1: Locating Body Integrated Unit Bolt
      G06653942Courtesy of SUBARU OF AMERICA, INC.
